HistoDream Microtomes
Automatic and Semi-Automatic Microtomes
Enhance Safety and Efficiency of your Cutting Routine
Cutting histological tissue requires advanced tools to ensure high-quality sections, guarantee safe operations for technicians, and provide efficient workflow. Milestone’s rotary microtomes have been built to address all these challenges.
The HistoDream M, semi-automated, and HistoDream AM, fully automated microtome, offer a valid and reliable approach to sectioning.
The HistoDream M, semi-automated, and HistoDream AM, fully automated microtome, offer a valid and reliable approach to sectioning.
-
Excellent Cutting Quality
-
Improved Efficiency
-
Superior Operational Safety
-
Designed for Ergonomics
-
Maximum Flexibility
Request a quote
Request a quote
EMERGENCY BUTTON
for improved operator’s safety
(automated microtome)
7″ TOUCHSCREEN DISPLAY
to set and customize cutting parameters
BALANCED HANDWHEEL
to minimize user fatigue
CLAMPS AND ORIENTING HEAD
fitting different operator’s cutting requirements
ANTISTATIC WASTE TRAY
to optimize cleaning time
SLIDING BLADE HOLDER
with finger guard
EXTERNAL KEYPAD
with control knob (optional for automated microtome)

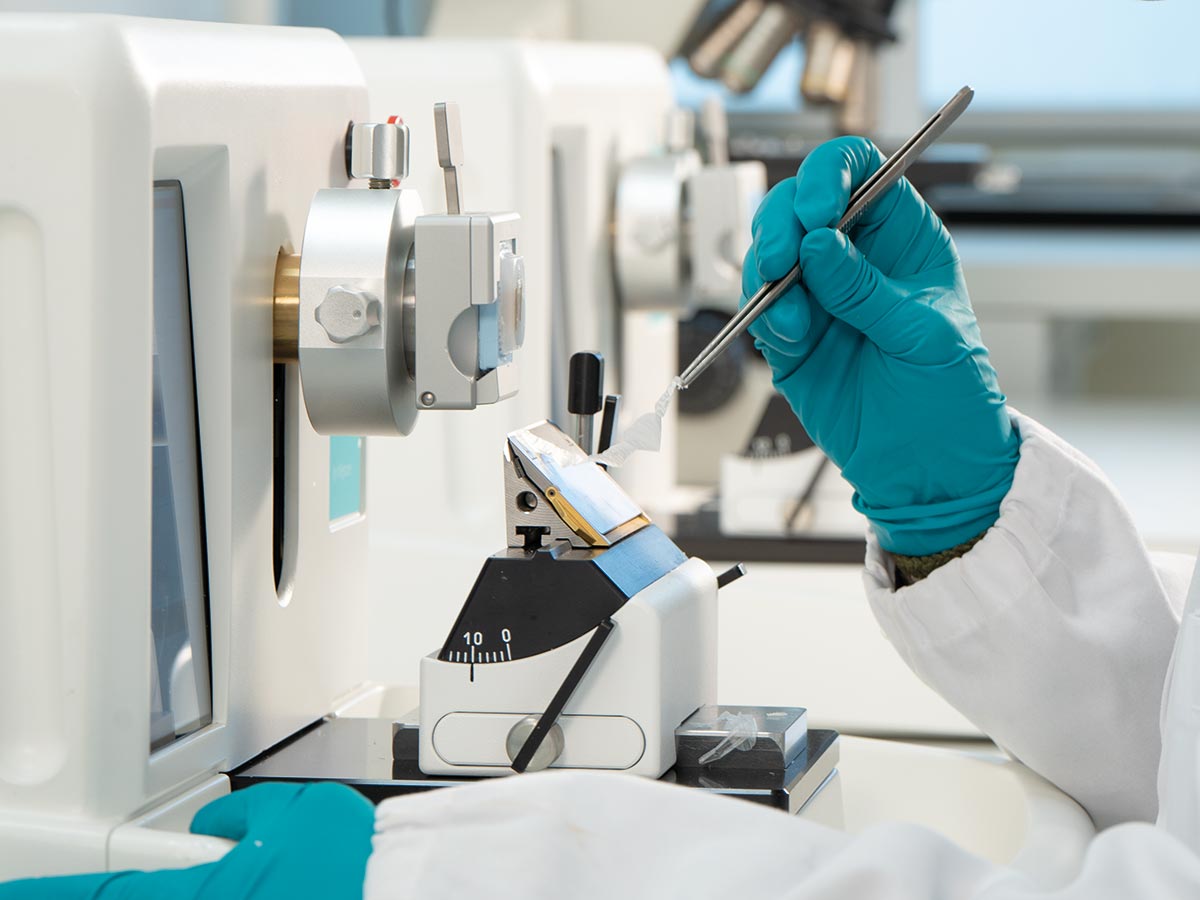

Excellent Cutting Quality
The HistoDream microtomes are designed to guarantee precise sectioning. The 0-position is easily identified on the orienting head to ensure correct positioning. At the same time, the 360° orientating head along with the mobility on both the x- and y-axis ensures superior precision and alignment of the block. The blade holder slides sideways in both directions, enabling the technician to take full advantage of the entire cutting edge.

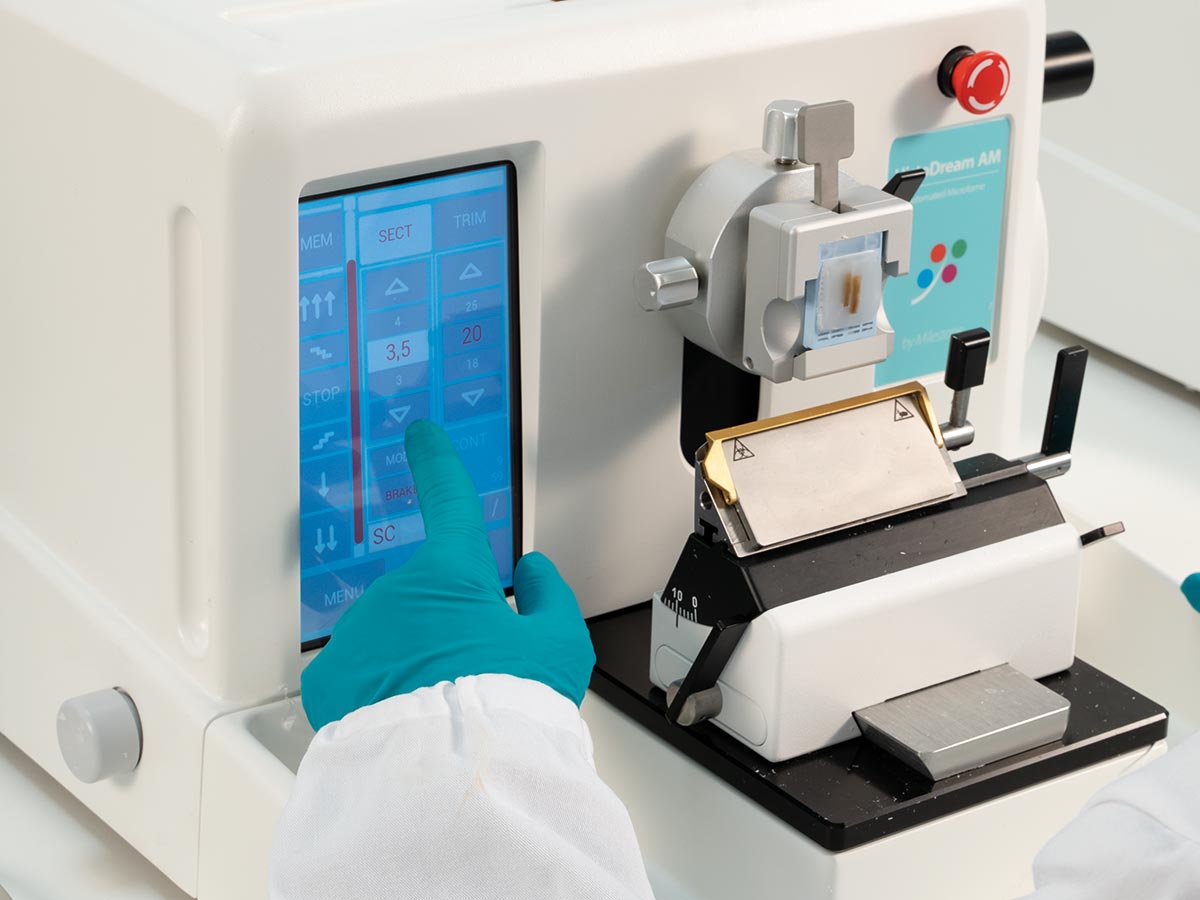

Improved Efficiency
Milestone’s microtomes provide superior sectioning efficiency. To simplify the adjustment, the motorized specimen feed is controlled through the wide touchscreen and stabilized via an innovative antivibration mechanism. A spacious tray with antistatic coating offers a large space for paraffin waste, reducing and simplifying cleaning time. On the top of the microtomes, a large flat area allows space for storage and access to tools routinely used.
Request a Virtual Demo
Request a Virtual Demo

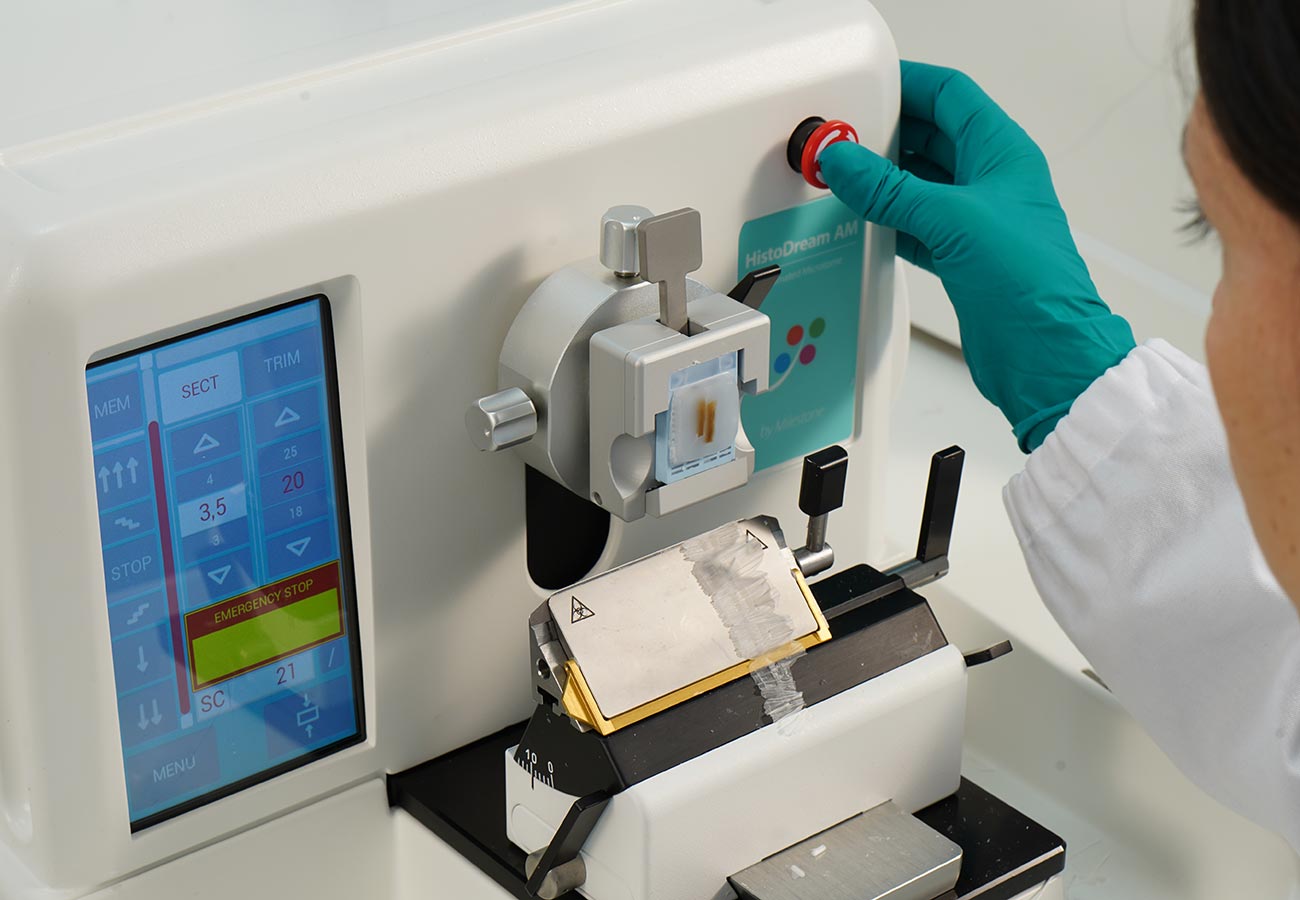

Superior Operational Safety
Milestone’s microtome line incorporates up-to-date features for the highest operational safety. The automated microtome is equipped with an emergency stop button and an electrical brake that activates automatically when cutting is paused. Both the automated and semiautomated microtomes offer a manual lock. Safety is also ensured with the blade holder’s integrated finger guard.
Designed for Ergonomics
The user-friendly touchscreen offers easy access to all parameters and fast adjustment when required. The cutting settings can be saved and recalled, thus expediting the process. The handwheel is balanced via an innovative counterweight mechanism to minimize user fatigue and prevent possible injuries. The automated microtome is also available with a footswitch and external controllers (keypad, control mouse), which are optional and made to fit any preferences.
Biospecimen Documentation
During cutting, histotechs can access all the information collected during the grossing step thanks to MileWATCH‘s search function. By simply scanning the cassette, the operator will be able to retrieve the digitized images that were taken during grossing with the MacroPATH digital system, and compare them with the embedded cassette, thus addressing potential mismatched numbers, sizes, or types of specimens and ensuring the chain of custody.
Maximum Flexibility
The HistoDream line offers the highest flexibility to match your current and future needs.
The microtomes, available with low- and high-profile blades as well as with a range of different clamps, allow the operator to optimize the use of this tool based on each specific cutting requirement.
The microtomes, available with low- and high-profile blades as well as with a range of different clamps, allow the operator to optimize the use of this tool based on each specific cutting requirement.

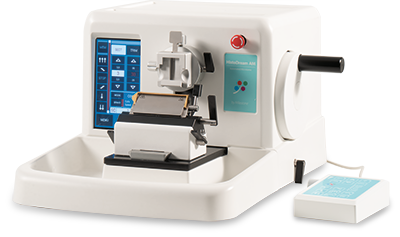

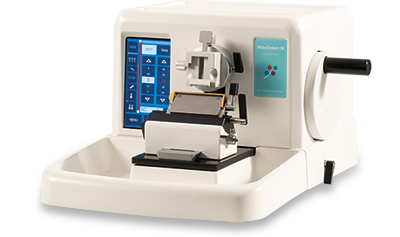

HistoDream M | HistoDream AM |
|
---|---|---|
Microtome type
|
Semi-automated
|
Fully automated
|
Built-in touchscreen with settings and memory function
|
|
|
Sideways-sliding blade holder (bidirectional)
|
|
|
Blade holder with finger guard
|
|
|
Motorized coarse feed
|
|
|
0-position indication in x and y directions
|
|
|
360° orienting head
|
|
|
Large waste tray (1,7 L) with antistatic coating
|
|
|
Balanced handwheel
|
|
|
Compatible with low and high profile blades
|
|
|
Specimen clamps
|
Standard, SuperMega and quick release
|
Standard, SuperMega and quick release
|
Automated electrical brake
|
–
|
|
External keypad with control knob (optional)
|
–
|
|
Footswitch (optional)
|
–
|
|
External control mouse (optional)
|
–
|
|
EasyCUT, static charges remover (ancillary unit)
|
|
|
Biospecimen Tracking System (optional)
|
|
|
